Products Description

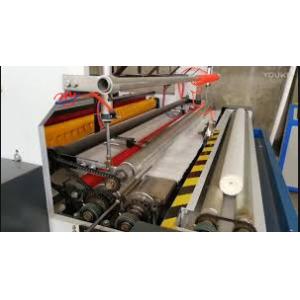

Automatic embossed bathroom paper perforated rewinding tissue toilet machinery
Description of the equipment:
This equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m² . The highest production speed is 120-160m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m 1.75m 1.95m 2.15m 2.35m 2.55m in width. There are two types of this model: One is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectally for each one.

Machine model	1575mm	1760mm	1880mm	2800mm	3500mm
Paper width(≤mm)	1800mm	2000mm	2200mm	2800mm	3500mm

1. Finished diameter (mm)	φ50~1800mm Adjustable Width
2. Finish paper core:	φ30~55mm
3.Base Diameter	1100mm Standard(Other size are available)
4.Jumbo Roll Core Diameter	76mm Jumbo Roll Core Diameter
5.Process Capability	150~280 M / Minute
6.Parameter Setting	PLC computer operating system interface
7.Back Stand	Standard three layersynchronous transmission
8.Perforation Pitch	2blades,150~300mm ;3blades,80~220mm
9.Power	5.5kw~15kw Stepless variable speed
10.Dimensions	6200x2600x800mm~6200x4000x800mm
11.Weight	2300kg~3800kg

Our Services & Strength

(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of machine, we will recall it and change a new one for fre

How to contact us?
Yolanda
Sales manager
Qinyang City Friends Machinery Equipment Co., Ltd
https://www.frdpapermachine.com/

Email:yolanda@hypapermachine.cn

Tel: 0391-5903288 Fax: 0391-5902391

WeChat/WhatsApp:​008615003918939 QQ:3345805360

Address:Xili industrial zone,Qingyang city,Henan province,China

                                                          ***********************  WHO WE ARE ********************

  Since 1989 Qinyang City Haiyang Papermaking Machinery Co., Ltd has been established who is specialist in manufacturing a wide range of   Paper Machines for Kraft, Test liner, Fluting paper, Corrugate, Writing & Printing, Newspaper, Duplex Board. We have more than 30 years     expertise lies in applying state of the art technology to provide cost effective custom designed solutions to suit their varied requirements.

  This company has processing and testing equipment like Longmen CNC machine, planer milling machine, vertical boring machine, automatic   continuous welding machine, high speed dynamic balance correction machine, assembly test table etc. With sophisticated processing  machinery and professional technical personnel, this company can produce super paper machine equipment.

   The main series of the products are tissue paper machine;kraft paper/testliner /fluting paper machine;writing paper machine and special  paper  machine,etc. This company provides customers high efficiency and practical paper making production line with low carbon environmental  protection thought. At present, our products have been sold to more than twenty provinces, cities and autonomous regions in domestic region and exported to Vietnam,Egypt, Bangladesh,Malaysia,Pakistan,Iran and other countries.
