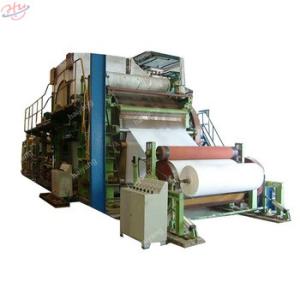

Products Description

1.Raw material:	Waste paper,wood pulp,carton paper etc.
2.Product variety:	Toilet paper ,Toilet jumbo roll
3.Trimmed paper width:	1092/1575/1760/1800/2400/2800/3200/3500mm
4.Ration:	13-23g/㎡
5.Design speed:	180-600m/min
6.Diameter of Yankee dryer:	1500mm-3660mm
7.Capacity:	0.8T/D-15T/D
8.Working speed:	80-600m/min
9.Transmission way:	AC variable frequency,section drive
10.Arrangement:	Cylinder mould & Vacuum cylinder or others

Main Equipments

1.Cylinder mould section

2.Dryer section

3.Winding section

Pulp equipment is a very important component, In the whole production line, They are composed by a lot of small equipments, such as hydrapulperm, high vibration screen, fiber separator, pulp pump,etc

Paper making machinery includes wires section, press section, dry section, transmission. In total ,every section includes many machines

Boiler is used for provide steam, which have three type , use coal ,natural gas and oil .

Pulp Making Equipments High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Paper Making Equipments Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing machine, Calender machine, Winding machine, Rewinder, Foundation frame

Our Strength
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of machine, we will recall it and change a new one for free;
Perfect service :
1.we can supply technical consulting and feasibility report according to client's current condition ;
2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price ;

4 Top Reasons why you can invest in toilet paper roll production line ?

• As more and more people become hygiene conscious,Toilet paper become an indispensable necessities in our daily life.
• The tissue paper industry has high growth potential, Making Tissue paper is technically feasible and financially viable projects which has huge returns with less investment.
• Favourable government policy support manufacturers to invest in this business field in every country of the world.
• The fully automatic production line are easy for operating and save labor cost.

How to contact us?

Yolanda

Sales manager
Qinyang City Friends Machinery Equipment Co., Ltd
https://www.frdpapermachine.com/
Email:yolanda@frdmachine.cn
Mobile/WhatsApp/WeChat:

008615003918939
Address:Xili industrial zone,Qingyang city,Henan province,China

                                                          ***********************  WHO WE ARE ********************

  Since 1989 Qinyang City Haiyang Papermaking Machinery Co., Ltd has been established who is specialist in manufacturing a wide range of   Paper Machines for Kraft, Test liner, Fluting paper, Corrugate, Writing & Printing, Newspaper, Duplex Board. We have more than 30 years     expertise lies in applying state of the art technology to provide cost effective custom designed solutions to suit their varied requirements.

  This company has processing and testing equipment like Longmen CNC machine, planer milling machine, vertical boring machine, automatic   continuous welding machine, high speed dynamic balance correction machine, assembly test table etc. With sophisticated processing  machinery and professional technical personnel, this company can produce super paper machine equipment.

   The main series of the products are tissue paper machine;kraft paper/testliner /fluting paper machine;writing paper machine and special  paper  machine,etc. This company provides customers high efficiency and practical paper making production line with low carbon environmental  protection thought. At present, our products have been sold to more than twenty provinces, cities and autonomous regions in domestic region and exported to Vietnam,Egypt, Bangladesh,Malaysia,Pakistan,Iran and other countries.
