Products Description

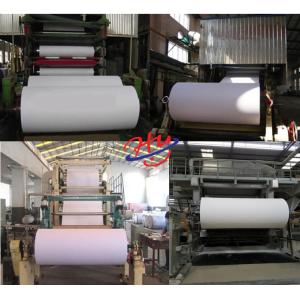

Waste Paper Recycling Machine Culture Paper Making Machine Paper
Product Making Machinery Production Line
A4 paper making machine includes the model
1092mm,1575mm,1880mm,2400mm,3200mm, etc. It can make cultural
paper,newspaper,writing paper, printing paper((A3,A4paper)),
transfer printing paper (A3,A4paper) , flat paper and so on.The
capacity is from 10 tons to 100tons per day.
The fourdrinier paper making machine is mainly used for making top
grade corrugated base paper, medium paper, high quality
light-weight paper (culture paper, newsprint, light weight
specialty paper). This kind of paper machine needs to choose
papermaking type, dewatering structure of press section,
arrangement of dryer cylinder group, sizing and finishing equipment
according to different paper grades and operating speed
requirements.
Technical Specifications
| 1.Raw material: | Waste paper,wood pulp,Carton paper ,etc. |
| 2.Product Variety: | Culture paper |
| 3.Papae width | 1092/1575/1760/1800/2100/2400/2800/3200/3600mm |
| 4.Quantitative: | 60-120g/㎡ |
| 5.Capacity: | 10T/D-100T/D |
| 6.Design speed: | 80-700m/min |
| 7.working speed: | 60-680m/min |
| 8.Rail gauge: | 2100/2500/2800/3000/3400/3800/4200/4600mm |
| 9.Transmission way: | AC variable frequency,section drive |
| 10.Arrangement: | Single/Multialayer floor layout |
Main Equipments
1.Brief introduction: This machine is mainly used for making high
strength corrugated paper. The paper machine is mainly divided into
the following parts: Headbox, Fourdrinier Wire Section, Press
Section, Front Dryer Section, Beveled Surface Sizing Machine, Back
Dryer Section, Reeling Section.
2.Headbox: Air-cushion headbox, by controlling the gas pressure
inside the headbox to control and stabilize the pulping pressure
head.
3. Wire Section: Single fourdrinier wire, the main components:
breast roll, forming plate, dehydration board, vacuum box, vacuum
couch roll,wire-driving rollers, wire-guiding roll and rack, etc,
and equipped with a piece of forming wire.
4. Press Section: It is divided into 1st press, 2nd press. 1st
press is the press with large diameter roll with a vacuum suction
roller,equipped with two coating metal rollers, and with upper felt
and lower felt; 2nd press is large diameter roll, equipped with two
coating metal rollers, and with upper felt and lower felt. 1st
press, 2nd press are equipped with leading felt roller and felt
suction box. 1st press, 2nd press pressurized way is oil hydraulic
cylinder pressure.
5. Front Dryer Section: 1800 dryer cylinder, group drive, each
group with dryer wire, wire-guiding roll. Equipped with
semi-enclosed gas hood.
6. Beveled Surface Sizing Machine: Equipped with a surface
chrome-plated metal roller, a coating metal roller. The surface
sizing press machine pressurized way is corrugated tire pressure.
7. Back Dryer Section: 1800 dryer cylinder, group drive, each group
with dryer wire, carrier roll. Equipped with semi-enclosed hood.
8. Reeling Section: Pneumatic horizontal reeling machine.
Our Services & Strength
After-sales Service
----We will delivery the machine as soon as possible according to
your requirement, within 50 days;
----We will send rich practiced experience engineers to you to
install and test the machine and train your worker for free;
----We will give you one year guarantee time after the machine can
run well;
----After one year, we can guide and help you to maintain the
machines;
----Every 2 years, we can help to overhaul the complete machines
for free;
----We will send you spare part in lower price.
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no
unqualified product;
(4) professional installation technician and clear technical
training for your workers;
(5) strict recalling system: if any problem of machine, we will
recall it and change a new one for free;
(6)Trade market:Our machines sell good in more than 30 countries,such
as Nigeria, Egypt,
Uzbekistan,Pakistan,America,Uganda,Turkey,Brazil,Fiji,Paraguay,Ethiopia,etc.
High quality and perfect service have reserved customer's praise
and more orders. We have established good relationship with many
foreign countries because of our good quality and perfect service.
Certifications
Payment terms
(1)30% T/T within 7days after sign contract;
(2)70% T/T before shipment ;
(3)100% L/C is also acceptable ;
(4) The payment way can be negotiated.
How to visit your factory and what is visiting schedule?
(1)Our company located in Qinyang city, Henan province,
From Beijing to our city,it will take 1.5hours by flight or 3 hours
by high speed train;From Guangzhou to our city,it will take 2 hours
and 20minutes by flight or 6.5hours by high speed train;From
Shanghai to our city,it will take 2hours by flight or 7hours by
high speed train;
(2)after you confirm visiting plan,please inform us,we will arrange
picking up and also booking hotel for you;
(3)welcome to visit our factory,you can check our factory
facility,machine manufacturing ability,machine quality,we will also
show you same working machine,you can check working performance and
get necessary information of whole project,this can help you know
well about this project;
